Renogy
Rover Li 60A 12/24/36/48V MPPT Solar Charge Controller
Rover Li 60A 12/24/36/48V MPPT Solar Charge Controller
Regular price
$825.28 AUD
Regular price
$0.00 AUD
Sale price
$825.28 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
99% tracking efficiency, 98% peak conversion efficiency.

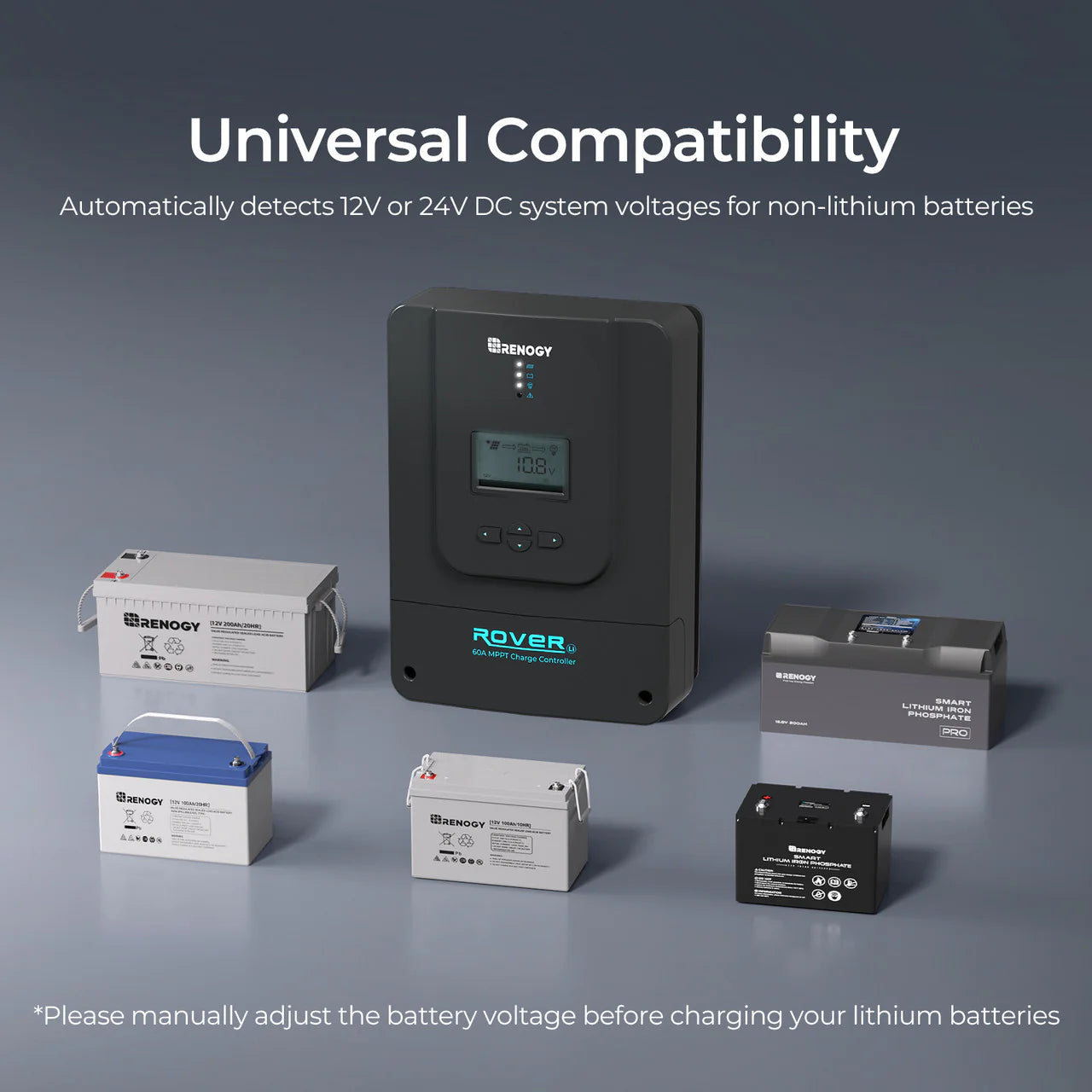

Auto-detects 12V/24V system (non-lithium batteries).
Comprehensive protection to secure your system.
Robust Charging. Serious Value.
Rover 60A MPPT Solar Charge Controller
Visualized Energy Data
Versatile Load Control
Real-time Monitoring
Get a clear and intuitive view of your solar system's performance, enabling smarter energy management.
Versatile Load Control
Rover 60A Charge Controller features Auto-On/Off Mode, Timer Mode, Manual Mode, Test Mode, and Always-On Mode, further maximizing your system flexibility.
Insulated Casing for Enhanced Safety
High-quality insulation materials offer maximum protection against electrical hazards, ensuring a secure and reliable charging solution.
Certified Protections
The Renogy Rover 60A Solar Charge Controller is equipped with superior 8 electronic protections that actively monitor voltage, current, and load fluctuations, ensuring efficient and safe battery charging.
Stay Cool, Stay Empowered
Constructed from durable die-cast aluminum, the heat sink of the Rover 60A Solar Charge Controller channels heat away through tubes, ensuring maximum charging efficiency and safeguarding critical components.
Charging with Precision

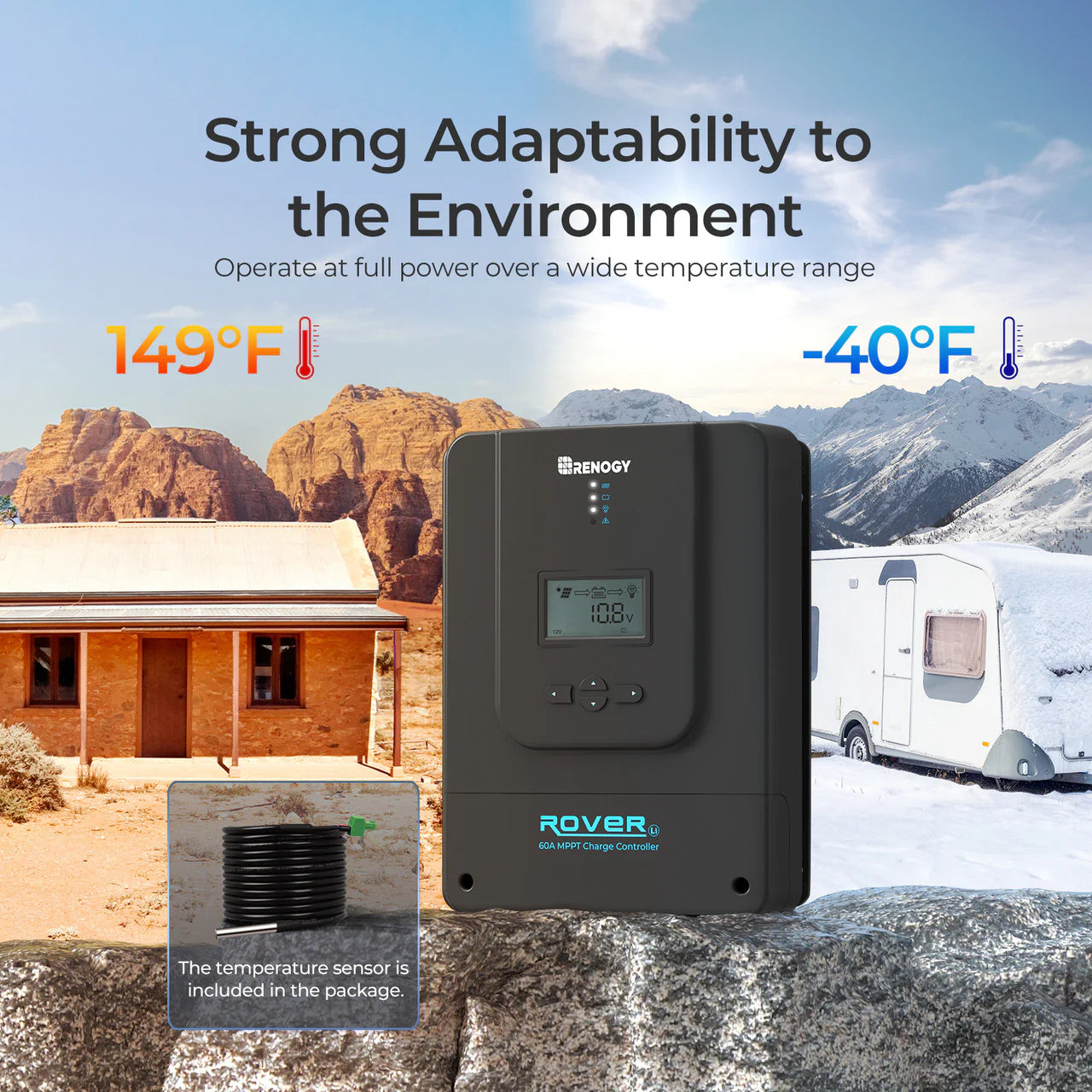

The included external temperature sensor allows the Rover 60A Solar Charge Controller to monitor the battery's temperature year-round, preventing undercharging in cold climates as low as -40°F and overcharging in hot weather up to 149°F.
Room for Expansion
Works with Bluetooth
Package Includes
Up to 6400W for a 48V System
Control Your Energy From Distance
Control Your Energy From Anywhere, Anytime
Ready-to-Install

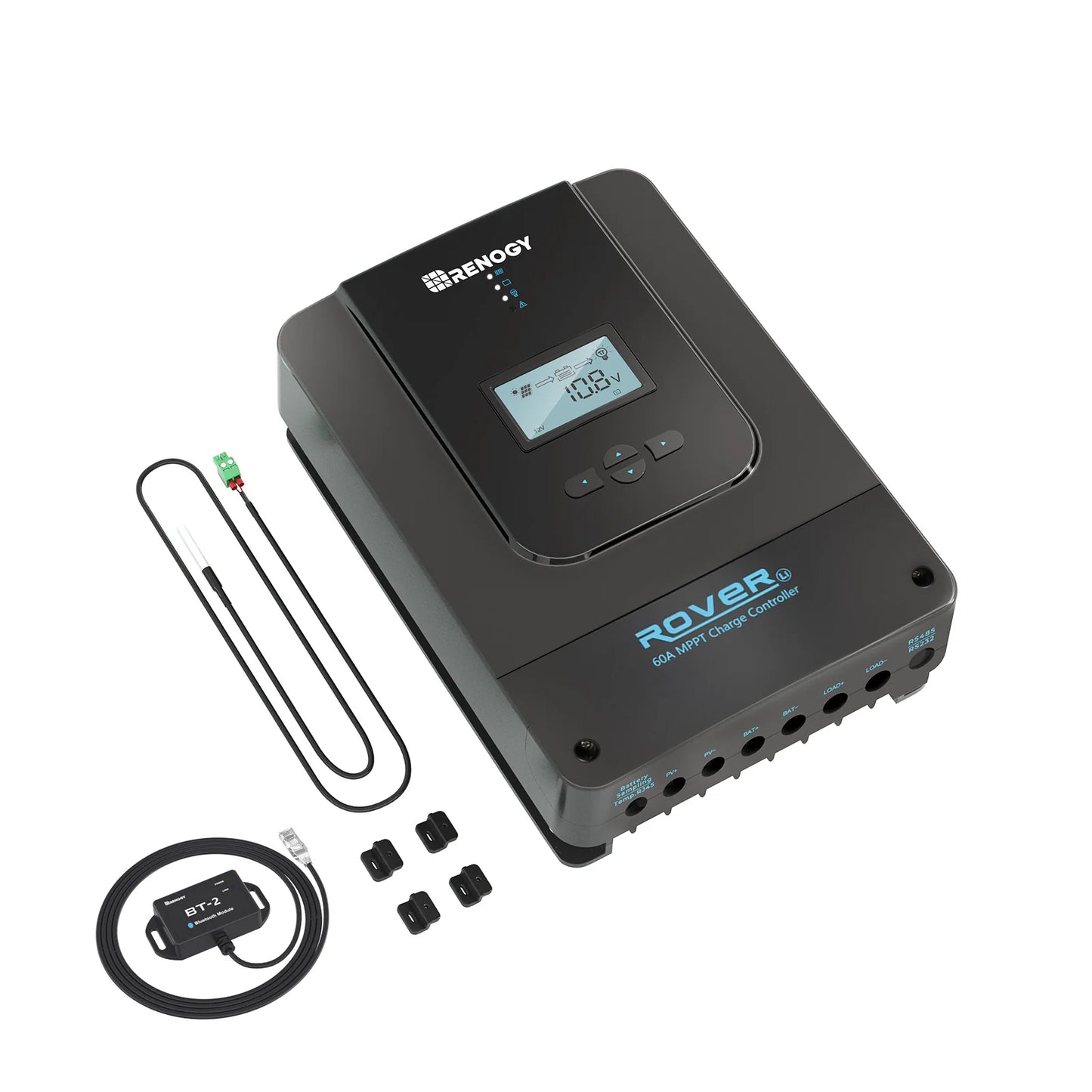

Package includes a Rover 60A Solar Charge Controller, a temperature sensor, a set of mounting brackets, and a user manual.
Learn more
Package Includes
- 1 x Rover Li 60 Amp MPPT Solar Charge Controller
- 1 x Remote Temperature Sensor
- 4 x Mounting Brackets
- Option：1 x BT-1 Bluetooth Module
| ROVER 60 AMP MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| Nominal Voltage:12V/24V/36V/48V Auto Recognition (for non-lithium batteries) | Rated Charge Current:60A |
| Rated Load Current:20A | Max. PV Input Power:800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
| Max. PV Input Voltage:140VDC | Self-Consumption:0.7W-1.2W |
| Operating Temperature:-31 °F to 113 °F (-35 °C to 45 °C ) | Temperature Compensation:-3mV/°C/2V (default) |
| Dimensions:285 x 205 x 102mm (11.22 x 8.07 x 4.00in) | Weight:7.9lbs |
| Enclosure:IP32 | Terminals:25mm2 4AWG |
| Certification:CE / ROHS | Compatible bluetooth:Renogy BT-1 Bluetooth module |
WARRANTY INFORMATION
| Accessories:2-year material warranty |
1. How should I wire my panels with an MPPT charge controller?
The panels can be wired in series, parallel, or a combination of both series and parallel configurations.
2. What are the advantages of Renogy MPPT technology?
Renogy Rover Series solar charge controllers use Power Catcher MPPT algorithm to always ensure the charge controller converts most energy by locking to the most optimal maximum power point.
3. What is a Solar Charge Controller and what is MPPT?
The Charge Controller takes the power made by the solar panels and transform the ‘solar panel power’ into a form of power that the batteries can use. MPPT stands for Maximum Power Point Tracking, and it relates to the solar cell itself. Each solar cell has a point at which the current (I) and voltage (V) output from the cell result in the maximum power output of the cell. MPPT ensures that you get the most power possible from your solar panels at any point in time. It is particularly effective during low light level conditions.
4. What would the connections for "Load(optional)" be used for? Also what would it rated for(amps/watts). The way I read the wiring diagram the batteries should get connected to inverter, would these get connected to inverter under certain conditions?
At the load terminal you want to avoid connecting DC devices with motors - you can connect light bulbs and DC fans without motors. This function requires the output terminal to be connected to the battery before use.
5. If I buy & hook up the 300 watt 24v solar panel to this controller - will it convert the 24v
The Rover 60 Amp Controller is designed to receive a total voltage of 150V & 60A solar panel array. Supports output voltage of 24V and has a maximum efficiency of 1600W. Ensure that the combined open circuit voltage and short circuit current of your solar panel set is less than our limit.
More questions about your off-grid power system? Learn more from!
